Makita base plate

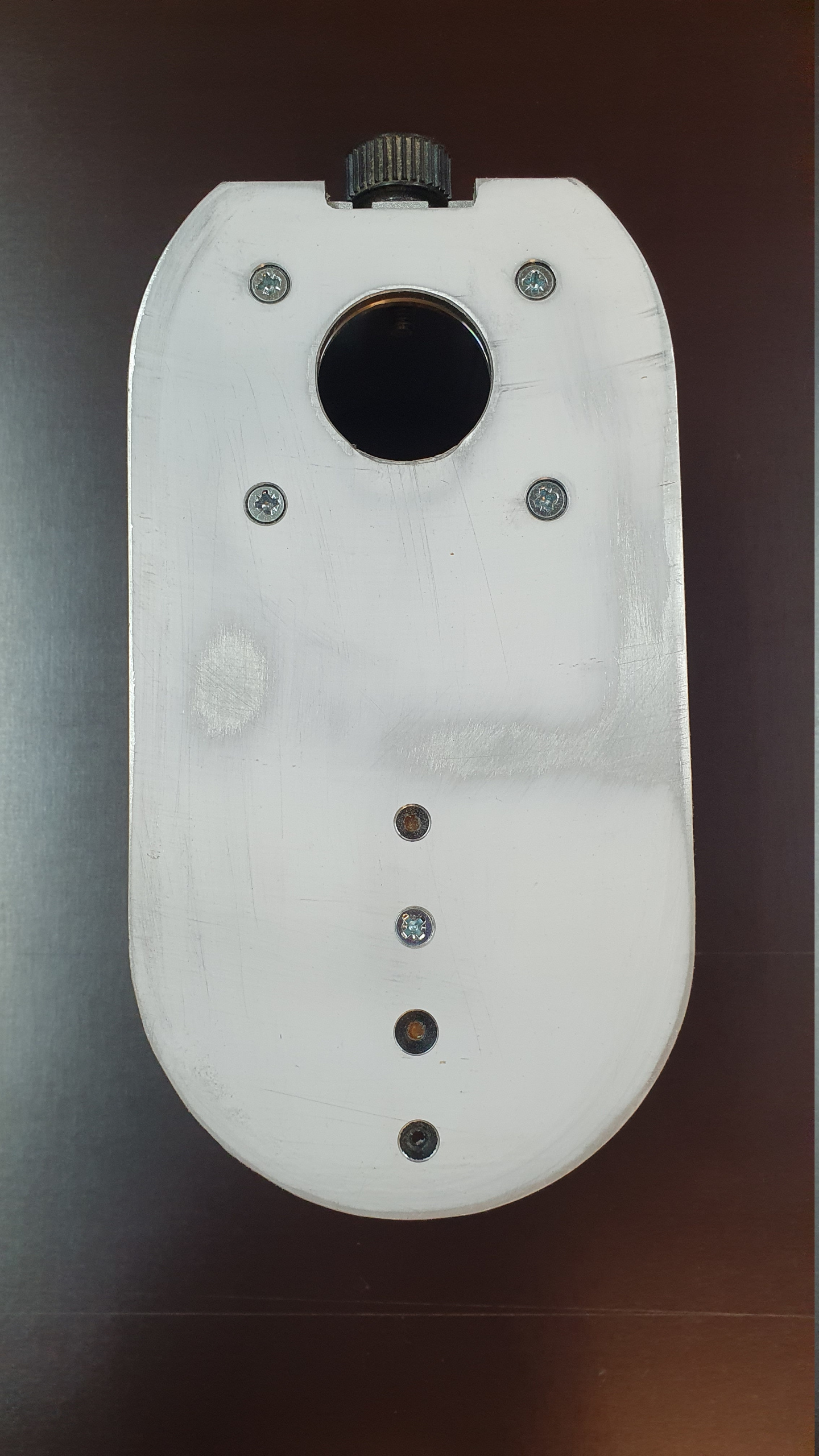

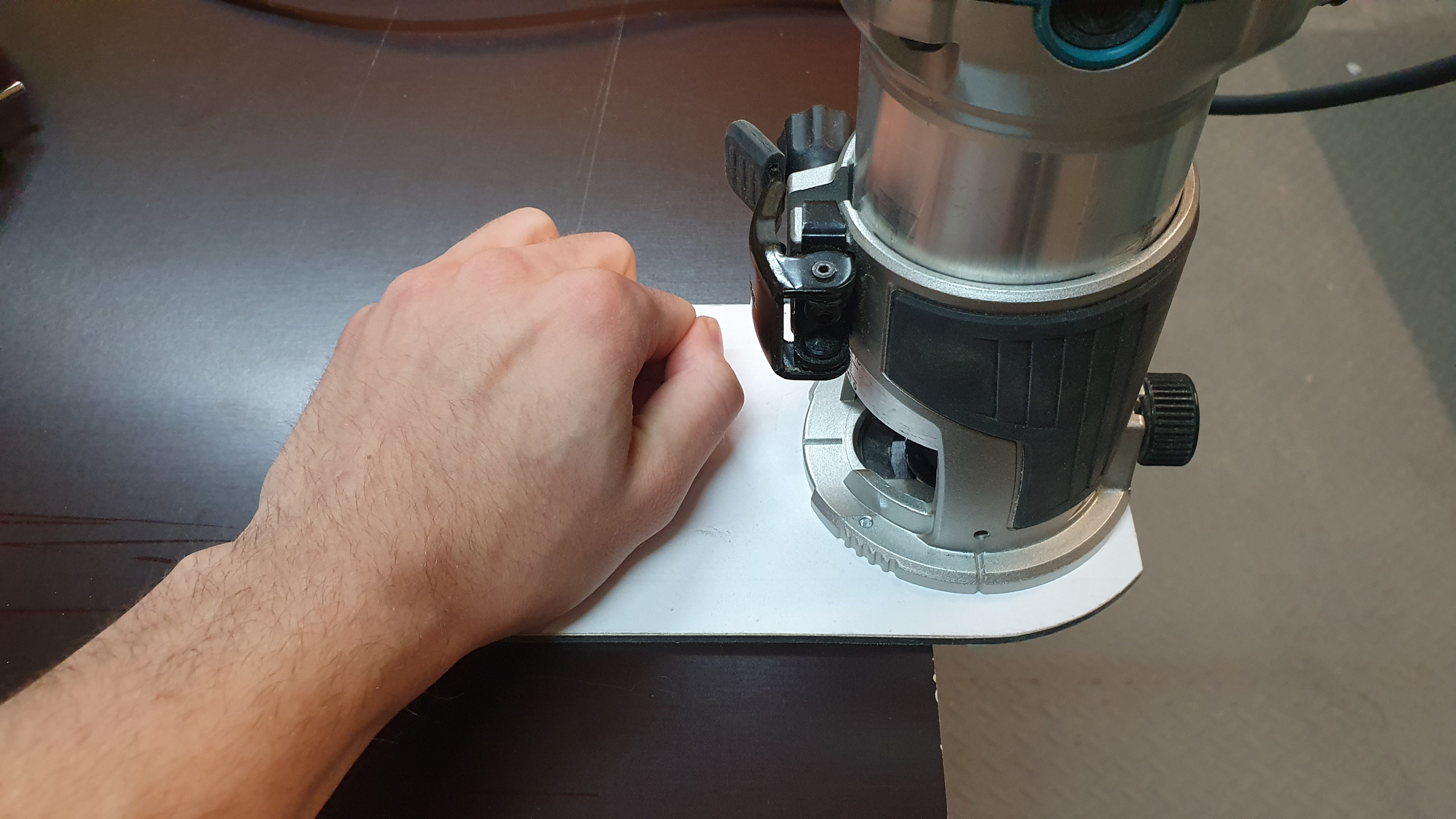

The default base plate of the Makita hand-router (RT0700CX2J) is pretty small and I tend to tip over. Therefore I made a bigger base plate that screws on just like the original.

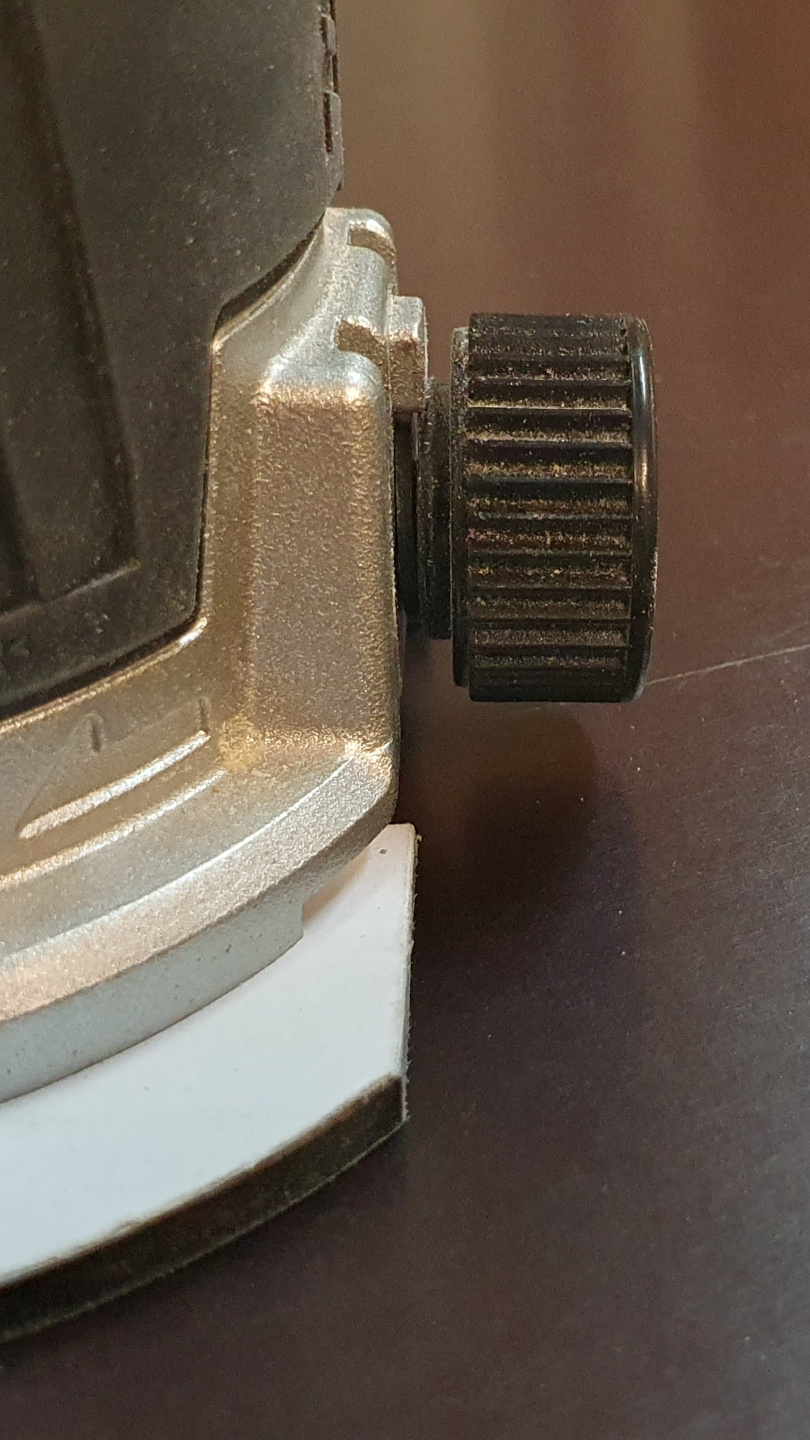

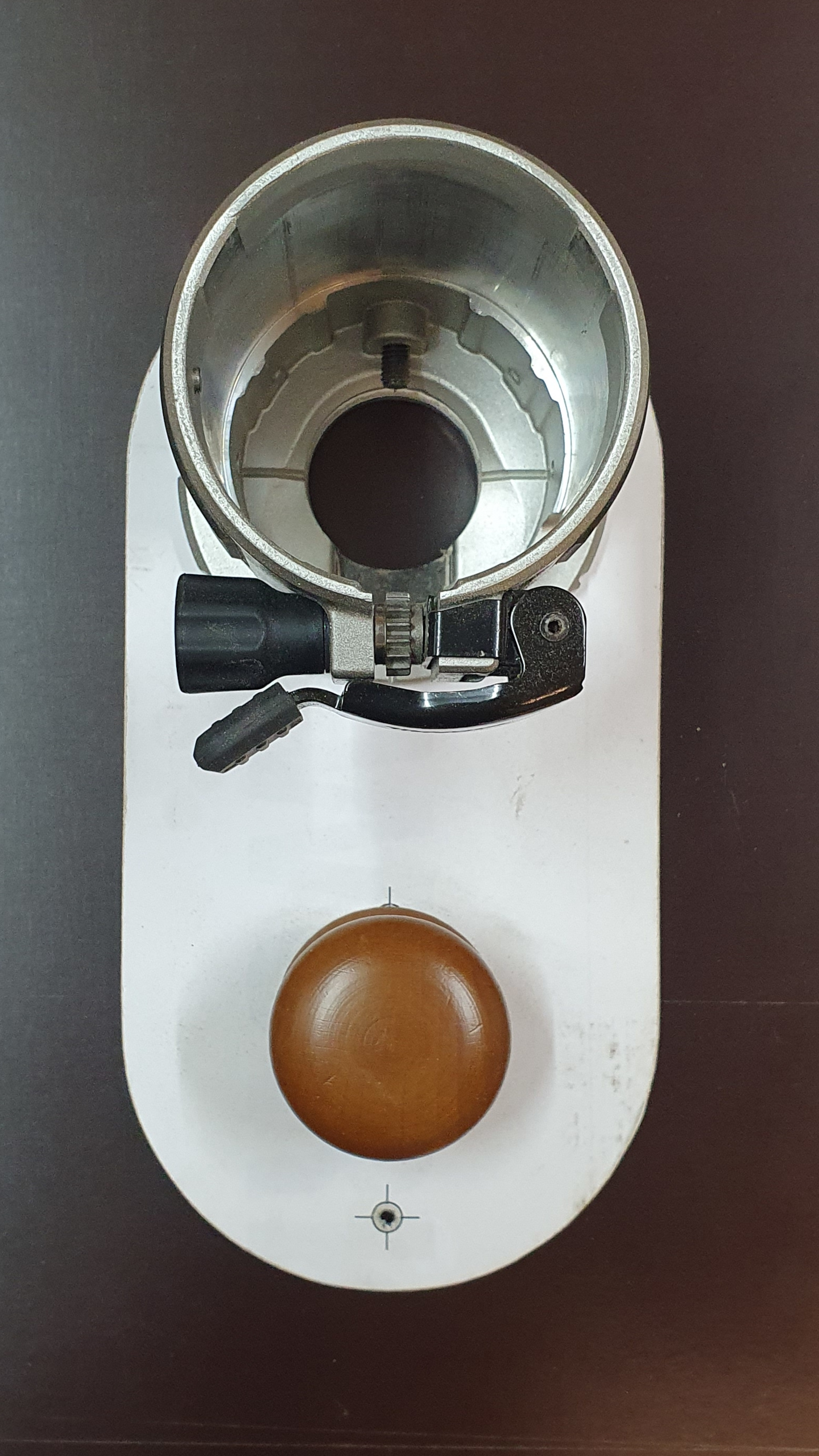

I simply glued a template on my workpiece and sawed it out. I also added a knob for a better grip.

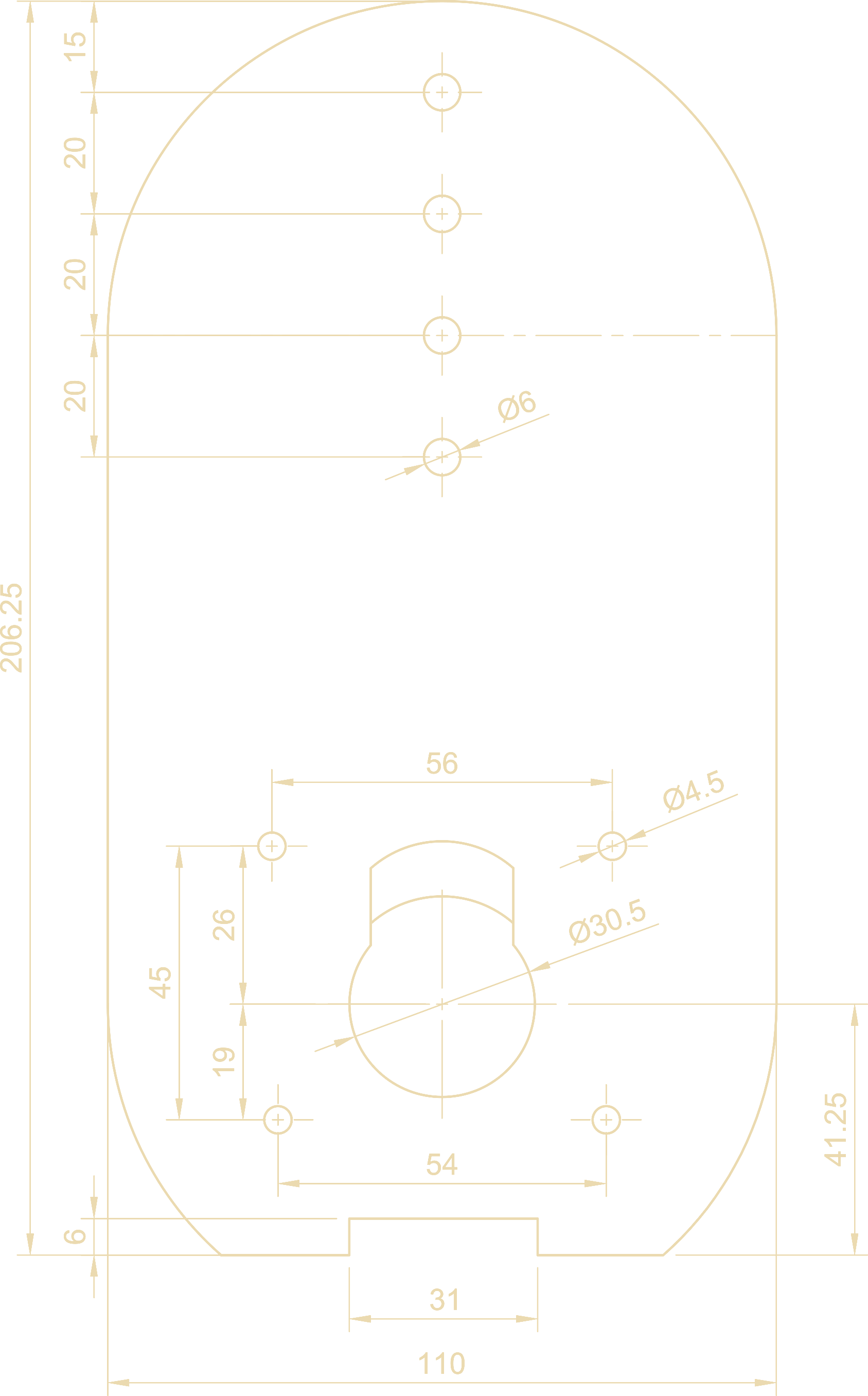

Download Makita_baseplate_drawing.pdf Download Makita_baseplate_template.pdf
